                  PORTABLE FIBROSCOPE

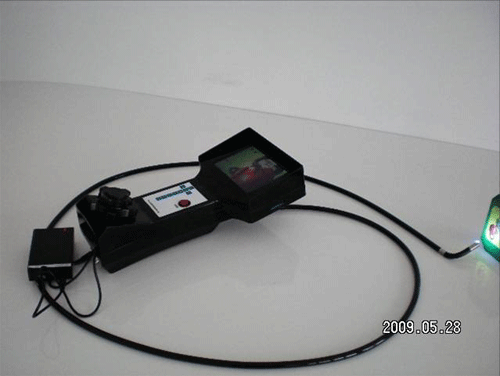

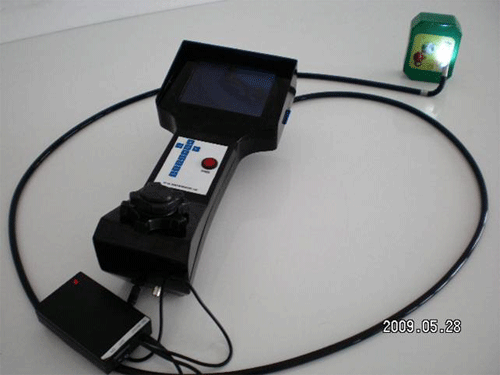

PORTABLE FIBROSCOPE ( WITH HAND HELD HELD MONITOR )
-----------------------------------------------------------------------------------------------------------------------------------------------


General:
Portable fibroscope search equipment with video monitor and endoscopic probe Endoscopic probe, Flexible , Protective and crush resistant, coiled steel sheath with PVC coating for optic fiber cable. Fuel / organic solvent / water / chemical resistant.

Insulated and electric shock proof resistant. Effective length – 2 meter , Outer diameter – 8 mm

Search Heads :      has miniature CCD Camera & 2 LED light source to view narrow, deep and dark cavities through the small aperture.
Camera :

4.5mm , colour miniature CCD camera, housed within the search head tip with 4.84 mega pixels resolution.

Lens:

FOV 100 degrees. The depth of field of view is 5 mm – 120 mm . Additional wide angle optical tip is provided with conventional optical tip.

Cold light source, LED , bright enough to give clear images of objects placed in deep cavities.

Battery:     12V  Lead Acid SMF  rechargeable battery.
Dimensions of control unit :

approx 300 mm x 200 mm x 125 mm

Lamp life :   approx 5000 hours. , with brightness control . Additional spare lamps also provided.
Display monitor:

Light weight TFT-LCD colour monitor 5 inch installed on the hand held unit. Controls Integrated with display monitor

Probe Search head articulation in four directions , at 93 degrees. Optical magnification is 11X .

2 GB card capacity to store above 1100 images. It has facility of video image processing in inbuilt memory . The data card is easily removable from the control unit without using any tools

Works on PAL / NTSC option

Power source AC power – 160 V to 250 V; 50 Hz

DC Power – Rechargeable battery ( Li-ion/ Ni-mh ) Battery of 2.5 hours operations each with one extra spare battery provided . Approx weight of battery : 300 grams

Battery charging level indicator along with status of charging on the charger is indicated

Push to On / Off switch for continuous operation . Membrane key pads for detailed controls

Connection for image / video display in external monitor through wire.

Equipment is shock / vibration proof , capable of operations at -20 deg C to + 65 deg C, Humidity : upto 95% (non-condensing)

Weight of equipment :
approx 5 Kgs.

Carrying case:
Weather proof, shock proof moulded carrying case lined with protective foam.

Warranty–3 years. Sufficient spares are available in stock and future availability till 7 years from date of supply after the warranty period.

Training tools , Technical manual , Practical training , User’s handbook & literature on preservation / maintenance of equipment provided , along with procedure for packing, handling, transportation and storage with equipment.


    Fully meeting MHA Specifications
    Customization as per user requirement possible
