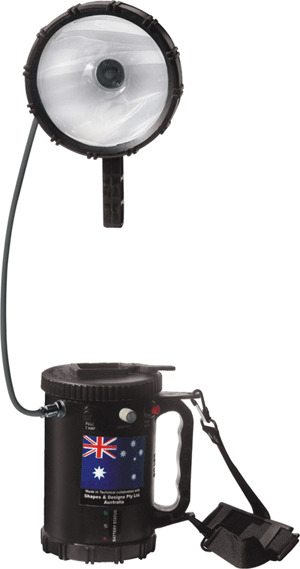

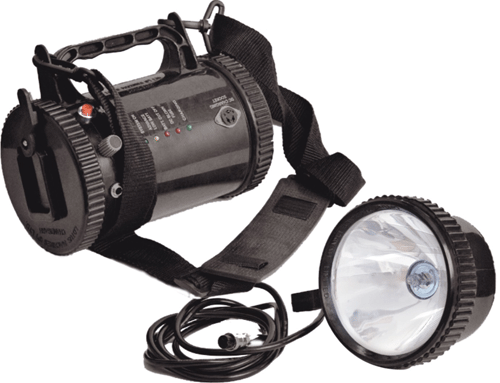

DETACHABLE TYPE - HHSL |
|
|
|
----------------------------------------------------------------------------------------------------------------------------------------------- |
Detachable Type - HHSL Operational Features : |
----------------------------------------------------------------------------------------------------------------------------------------------- |
BODY
- Push to ON Button.
- Operations in Continuous mode (continuous on of light).
- Operations in Manual flash mode (On of light for a second).
- Timer : On of light for 30 sec., and then automatic off.
- Dimmer : 0 to 100 %, for increasing battery duration, short distance searches.
- Auto Flasher : Blinking of light / flashes from 8 per second to 5 flash / minute for signalling purpose.
- Inbuilt universal SMPS charger from 70-270 V AC.
- LED's for indicating charging status and battery status in use.
SPOT LIGHT
- On / Off Button.
- 2 mtrs. connecting wire to body (more length also available).
|
|
SPOT LIGHT
|
Available with / without LCD display |
|
Standard Dimensions- Non Detachable Type Light |
Model No. |
Halogen Bulb |
Sealed battery |
Length (mm) |
Dia (mm) |
Weight (kg) |
Duration of Operation |
Full Glow |
Min. Glow |
|
Lotus
551207 |
Lotus
551212 |
Lotus
1001212 |
|
|
12 V 7.6Ah |
12 V 12Ah |
12 V 12Ah |
|
|
|
|
|
|
|
|
Light Properties |
----------------------------------------------------------------------------------------------------------------------------------------------- |
- Beam of light Reaches approx.1 Km distance in clear weather conditions.
- Easily detects group of persons at 350 metres.
- Lux value at 350 metres distance of :
- 55 watt bulb: 8 lux (approx )/ 1 million c.p. at 5m.
- 100 Watt bulb: 16 lux (approx)/ 2 million c.p. at 5m
|
|
|
|
|
Physical Features (of all series & models) |
----------------------------------------------------------------------------------------------------------------------------------------------- |
- Nylon Glass filled Heavy duty body with avg. wall thickness 2.5 mm.
- Option also available with ABS & Polycarbonate material.
- Halogen Bulb with Deep Parabolic reflector.
- Reflector front glass does not crack when droplets of water fall on it when lights is on.
- Standard Rechargeable Sealed Maintenance Free Lead Acid Battery.
- Optional Nimh, Li-on, Ni-cd battery also available.
- Integrated handle with Nylon Strap for shoulder resting.
- Integrated Electronic Circuits with inbuilt charger and programmable micro-processor controlled circuit.
- Water resistant, shock resistant, crack resistant body.
- It is ideal product for applications where high quality and intensity light is essentially required.
- The HHSL is light in weight, easy to carry with multiple charging options.
- HHSL can be customized in colours
|
|
|
Application |
----------------------------------------------------------------------------------------------------------------------------------------------- |
1. Army/Paramilitary/Security forces (for border patrolling/checking/mounting of vehicles/special tasks/compound security).
2. Police (for VIP security/routine checking/special searches ), Electricity Dept., (repairs & maintenance, emergency duties).
3. Fire Brigades : (Emergency operations), Office-Factory security, Field Projects.
|
|
|
|
|
|
* Design, Specification subject to change without notice. |
|
|
|
|
