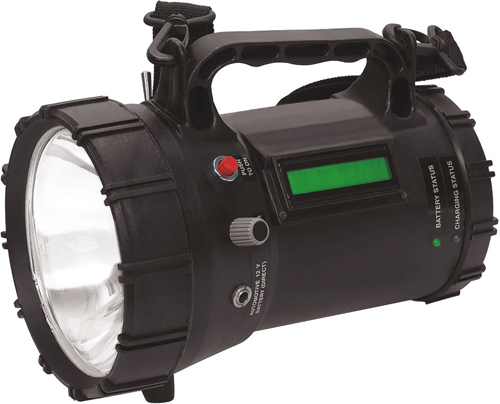

HAND HELD SEARCH LIGHTS

-----------------------------------------------------------------------------------------------------------------------------------------------

The product is also known as :

Standard Dimensions- Non Detachable Type Light

Model No.

Halogen Bulb

Sealed battery

Length (mm)

Dia (mm)

Weight (kg)

Duration of Operation
Full Glow	Min. Glow

Lotus 551207

Lotus 551212

Lotus 1001212

100

12 V 7.6Ah

12 V 12Ah

250

160

3.70

4.70

80 min

140 min

80 min

750 min

1275 min

900 min

Light Properties
-----------------------------------------------------------------------------------------------------------------------------------------------
		Beam of light Reaches approx.1 Km distance in clear weather conditions. Easily detects group of persons at 350 metres. Lux value at 350 metres distance of : 55 watt bulb: 8 lux (approx )/ 1 million c.p. at 5m. 100 Watt bulb: 16 lux (approx)/ 2 million c.p. at 5m.

Physical Features (of all series & models)

-----------------------------------------------------------------------------------------------------------------------------------------------

Nylon Glass filled Heavy duty body with avg. wall thickness 2.5 mm.
Option also available with ABS & Polycarbonate material.
Halogen Bulb with Deep Parabolic reflector.
Reflector front glass does not crack when droplets of water fall on it when lights is on.
Standard Rechargeable Sealed Maintenance Free Lead Acid Battery.
Optional Nimh, Li-on, Ni-cd battery also available.
Integrated handle with Nylon Strap for shoulder resting.
Integrated Electronic Circuits with inbuilt charger and programmable micro-processor controlled circuit.
Water resistant, shock resistant, crack resistant body.
It is ideal product for applications where high quality and intensity light is essentially required.
The HHSL is light in weight, easy to carry with multiple charging options.
HHSL can be customized in colours

Application

-----------------------------------------------------------------------------------------------------------------------------------------------

1. Army/Paramilitary/Security forces (for border patrolling/checking/mounting of vehicles/special tasks/compound security).

2. Police (for VIP security/routine checking/special searches ), Electricity Dept., (repairs & maintenance, emergency duties).

3. Fire Brigades : (Emergency operations), Office-Factory security, Field Projects.

	To View Accessories Click Here

* Design, Specification subject to change without notice.
