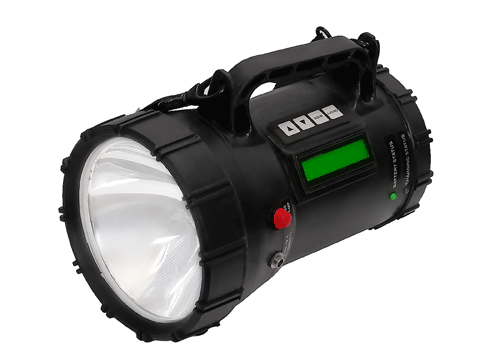

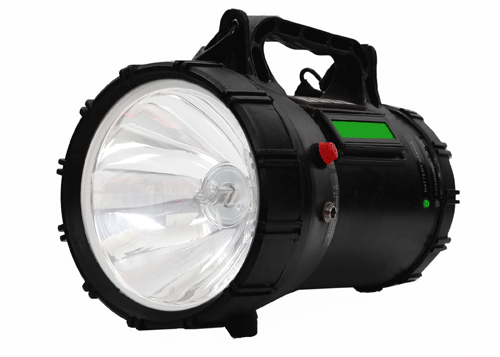

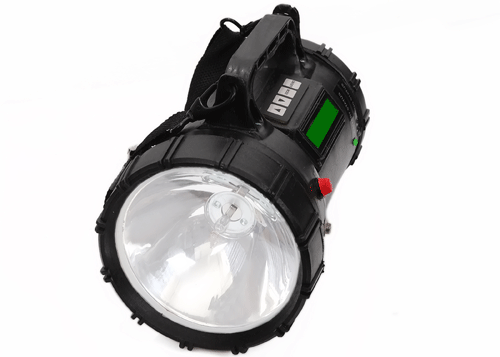

| DIGITAL VERSION - HHSL |
| |
|
|
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
| Digital Version - HHSL Operational Features : |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- Advanced Micro-processor technology with integrated electronic circuit.
- All controls through Membrane switches.
- LCD with backlight, Display of battery status, operation mode , feature status etc.
- Operations in Continuous mode (continuous on of light).
- Operations in Manual flash mode (on of light for a second).
- Operation in Timer mode (On of light for pre-determined time period).
- Dimmer (to adjust light intensity from 0 to 100%).
- Auto flasher (to adjust blinking of light / flashes from 8 / second to 5 flashes/minute.
- Variable Timer : to adjust light operations from 30 seconds to 15 minutes.
- Option to activate / deactivate Emergency Light feature
|
|
|
- Inbuilt universal charger from 70 V AC to 270 V AC.
- Tri-Colour LED's for indicating charging status and battery status in use
- OPTIONAL : Delayed ON timer : for pre-setting of time for delay in start of operation.
|
|
| |
| Standard Dimensions- Non Detachable Type Light |
Model No. |
Halogen Bulb |
Sealed battery |
Length (mm) |
Dia (mm) |
Weight (kg) |
Duration of Operation |
Full Glow |
Min. Glow |
|
Lotus
551207 |
Lotus
551212 |
Lotus
1001212 |
|
|
| 12 V 7.6Ah |
| 12 V 12Ah |
| 12 V 12Ah |
|
|
|
|
|
|
|
|
| |
| Light Properties |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- Beam of light Reaches approx.1 Km distance in clear weather conditions.
- Easily detects group of persons at 350 metres.
- Lux value at 350 metres distance of :
- 55 watt bulb: 8 lux (approx )/ 1 million c.p. at 5m.
- 100 Watt bulb: 16 lux (approx)/ 2 million c.p. at 5m
|
| |
|
|
|
| Physical Features (of all series & models) |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- Nylon Glass filled Heavy duty body with avg. wall thickness 2.5 mm.
- Option also available with ABS & Polycarbonate material.
- Halogen Bulb with Deep Parabolic reflector.
- Reflector front glass does not crack when droplets of water fall on it when lights is on.
- Standard Rechargeable Sealed Maintenance Free Lead Acid Battery.
- Optional Nimh, Li-on, Ni-cd battery also available.
- Integrated handle with Nylon Strap for shoulder resting.
- Integrated Electronic Circuits with inbuilt charger and programmable micro-processor controlled circuit.
- Water resistant, shock resistant, crack resistant body.
- It is ideal product for applications where high quality and intensity light is essentially required.
- The HHSL is light in weight, easy to carry with multiple charging options.
- HHSL can be customized in colours
|
|
| |
| Application |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
1. Army/Paramilitary/Security forces (for border patrolling/checking/mounting of vehicles/special tasks/compound security).
2. Police (for VIP security/routine checking/special searches ), Electricity Dept., (repairs & maintenance, emergency duties).
3. Fire Brigades : (Emergency operations), Office-Factory security, Field Projects.
|
|
|
|
| |
|
|
| * Design, Specification subject to change without notice. |
| |
|
|
