| UNDER VEHICLE SEARCH MIRRORS |
| |
|

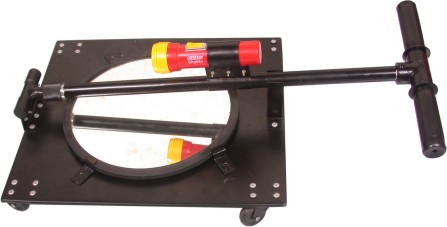

Lotus Under Vehicle Trolley Search Mirror is an essential equipment for search / encounter operation & to locate hidden explosive devices/
suspected objects beneath Car, Jeeps, Trucks, Tables & Almirahs etc.
|
| |
| Standard
Features |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- It is fitted with a convex mirror of 11 inch. (for wide angle image.) Larger dia mirror of 14 / 16 inches also available.
- Fixed on the flat steel platform mounted on 4 no. poly carbonate caster wheels.
- Suitable foam padded protection for Mirror is also available (Optional).
- Wooden Shock resistant Packing box for the system (Optional).
|
| |

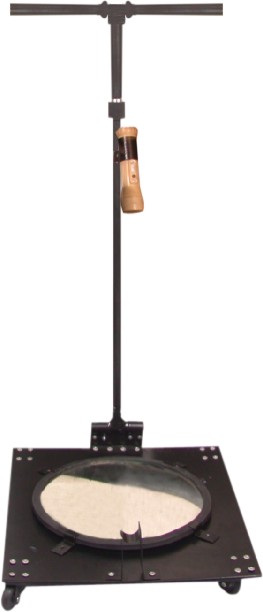

| MODEL NO. LTM 1 |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
MODEL NO. LTM 1 is equipped with adjustable Torch fitted on the
Telescopic Handle /Rod. Most suited for day application. |
|
|
|
Has Power Coated Steady, Telescopic Rods with handle adjustable from 50 cm to 130 cm (Appox.) with desired length locking by clip type clutch locking systems.
|
|
| |
|
|

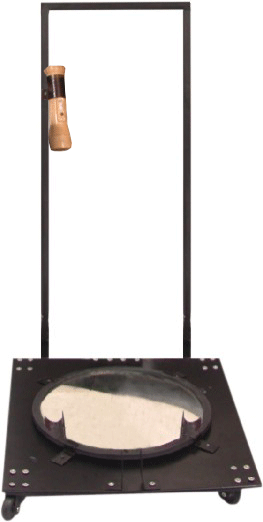

| MODEL NO. LTM 1-A |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
| |
MODEL NO. LTM 1-A has double handles, for better control on equipment movements. Most suited for day application. Has torch fitted on the telescopic handles.
|
|
| |

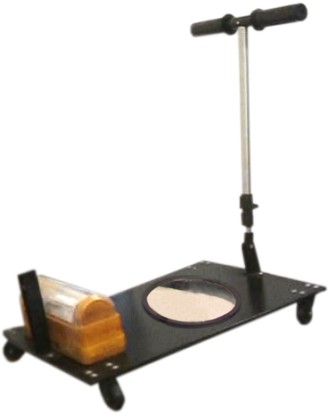

| MODEL NO. LTM 2 |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
MODEL NO. LTM 2 is provided with a CFL based 5 / 7 / 9 watt lamp with rechargeable Battery & inbuilt charger from 70 to 270 volts AC. It is having Push to ON / OFF switch and low battery cut-off. Suited for both day & night application. |
|
|
|
| |

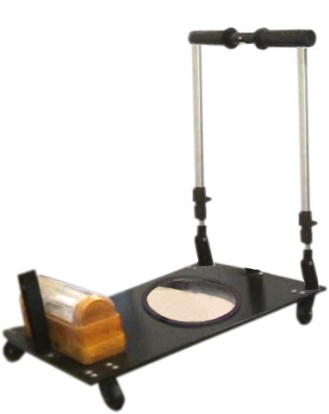

| MODEL NO. LTM 2 A |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
MODEL NO. LTM 2 A has double handles, for better control on equipment movements is provided with a CFL based 5 / 7 / 9 watt lamp with rechargeable Battery & inbuilt charger from 70 to 270 volts AC. It is having Push to ON / OFF switch and low battery cut-off. Suited for both day & night application. |
|
LTM - 2A
|
|
| |

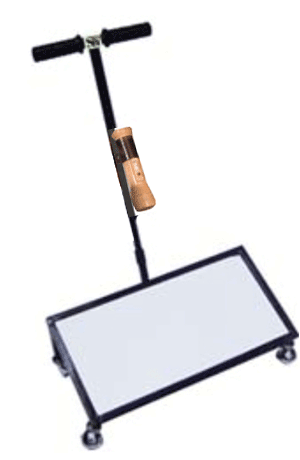

| MODEL NO. LTM 3 |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
Technical Data - Under Vehicle Search Trolley Mirror |
Mirror Size |
Arm Length |
Weight (Approx) |
Lighting ( Optional) |
Spl. Features |
Application |
|
2 ft x 1 ft (Plane) |
3 ft ( Detachable ) ( optional : telescopic )
|
6 Kg. |
dry Cell Torch ( optional 2 / 4 cell ) |
Large Area Viewing |
Under Carriage Inspection of Vehicles |
|
|
| |
|
|
|
| |

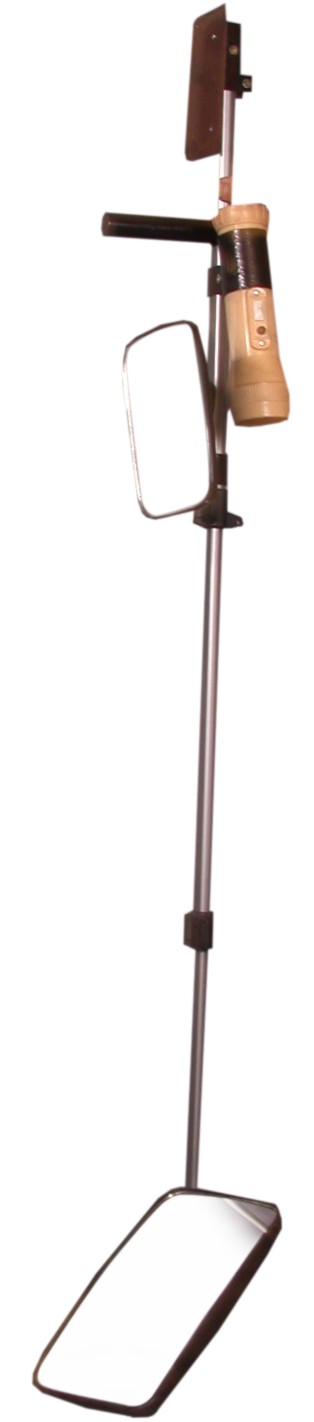

| Telescopic Extension Search Mirror / Surveillance Periscope |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
| Lotus Telescopic Extension Mirror / Surveillance Periscope is to view hidden explosive evices/suspected objects around corners, through doorways, over walls, and under ledges without putting yourself in danger. |
| |
|
|
- It consists of Telescopic adjustable ( 50cm to 130 cm) Powder Coated Rods, lock-able in desired position by way of Quick – Release clip liver type clutch locking system.
- At the end of thinnest rod, convex mirror of size 20 cm x 12 cm is provided (customized mirror sizes also available).
- At the end of the thickest Rod on Arm Rest, handle & Plain mirror of 12 cm x 7.5 cm with adjustable 3 dimensional mounting and arrangement to suitable align for the periscope operations, is provided (customized mirror sizes also available).
- A light torch with adjustable mounting for focusing / Aligning with convex mirror is provided over thickest rod.
- Comes with protective padded cover for mirrors and carrying case with shoulder mounting.
|
|
|
| * Design, Specification subject to change without notice. |
|
| |
|
|
