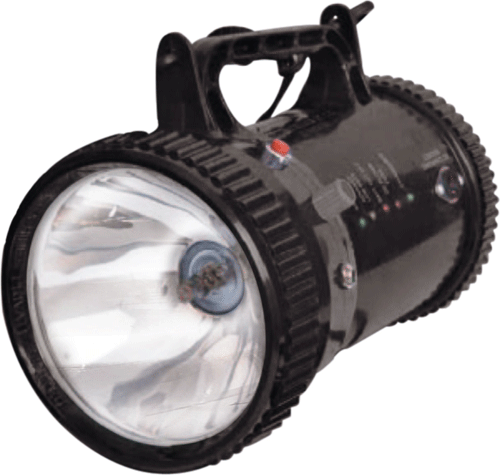

| TFC MODEL |
| |
|
|
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
| TFC Operational Features : |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- Push to ON Button.
- TFC toggle switch (TFC=timer, flasher, continuous)
- Continuous mode (continuous on of light).
- Timer mode (On of light for fixed time period of 30 sec).
- Variable Auto flasher (to adjust blinking of light from 8 flashes /second upto 5 flash / minute.
- Variable Dimmer (to adjust light intensity from 0 to 100%).
- Inbuilt universal charger from 70-270 V AC, 47 - 60 HZ
( External charger option also available. )
LIGHT PROPERTIES
- Beam of light Reaches approx.1 Km distance in clear weather conditions.
- Easily detects group of persons at 350 metres.
- Lux value at 350 metres distance of :
55 watt bulb: 8 lux (approx )/ 1 million c.p. at 5m.
100 Watt bulb: 16 lux (approx)/ 2million c.p. at 5m.
|
|
TFC MODEL NON DETACHABLE TYPE
|
| |
Standard Dimensions- Non Detachable Type Light |
Model No. |
Halogen Bulb |
Sealed battery |
Length (mm) |
Dia (mm) |
Weight (kg) |
Duration of Operation |
Full Glow |
Min. Glow |
|
Lotus
551207 |
Lotus
551212 |
Lotus
1001212 |
|
|
| 12 V 7.6Ah |
| 12 V 12Ah |
| 12 V 12Ah |
|
|
|
|
|
|
|
|
| |
| Standard Physical Features (of all series & models) |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- Nylon Glass filled Heavy duty body with avg. wall thickness 2.5 mm.
- Option also available with ABS & Polycarbonate material.
- Halogen Bulb with Deep Parabolic reflector.
- Reflector front glass does not crack when droplets of water fall on it when lights is on.
- Standard Rechargeable Sealed Maintenance Free Lead Acid Battery.
- Optional Nimh, Li-on, Ni-cd battery also available.
- Integrated handle with Nylon Strap for shoulder resting.
- Integrated Electronic Circuits with inbuilt charger and programmable micro-processor controlled circuit.
- Water resistant, shock resistant, crack resistant body.
- It is ideal product for applications where high quality and intensity light is essentially required.
- The HHSL is light in weight, easy to carry with multiple charging options.
- HHSL can be customized in colours
|
|
| |
| Application |
| ----------------------------------------------------------------------------------------------------------------------------------------------- |
- Army/Paramilitary/Security forces (for border patrolling/checking/mounting of vehicles/special tasks/compound security).
- Police (for VIP security/routine checking/special searches ), Electricity Dept., (repairs & maintenance, emergency duties).
- Fire Brigades : (Emergency operations), Office-Factory security, Field Projects.
|
|
|
|
|
|
| |
|
|
|
|
| * Design, Specification subject to change without notice. |
|
|
|
|
